Description

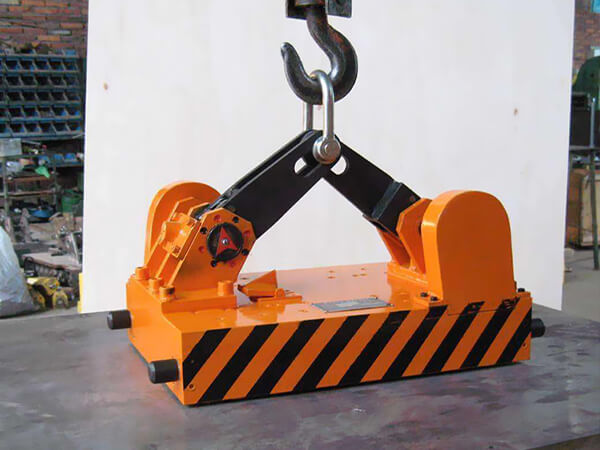

A fully automatic permanent magnet chuck is a suction cup device that uses permanent magnet force to adhere to flat or uneven surfaces. Made of high-performance permanent magnet materials, it generates strong suction and maintains stability. Self-priming permanent magnet chucks feature self-priming and automatic release functions, requiring no external power supply or control system, making them convenient, safe, and reliable to use.
Working Condition

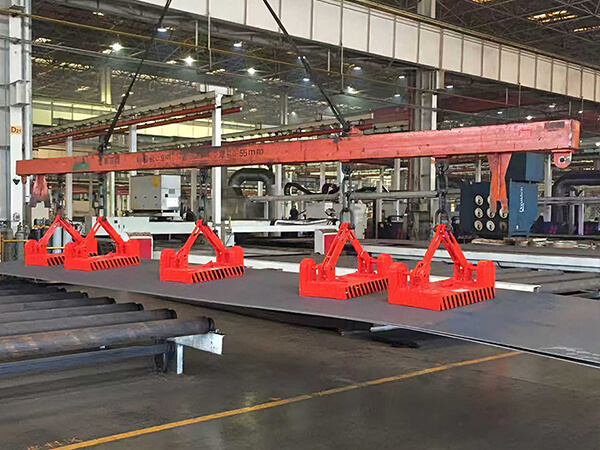

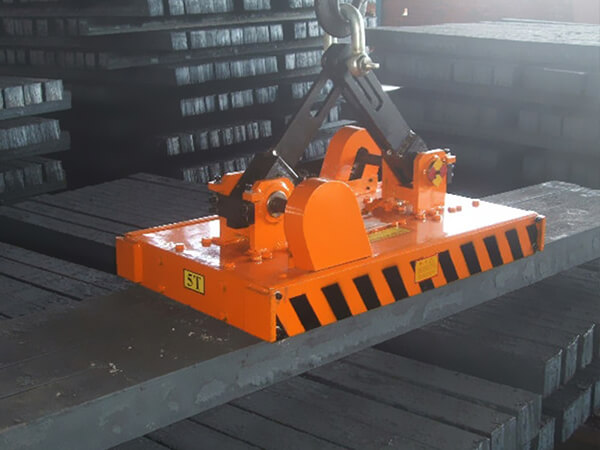

The fully automatic permanent magnet lifter requires no manual operation of the handle; it relies on the lifting and lowering control of the electric crane’s hook to attract and lift corresponding round steel bars and steel plates. It requires no electricity, is safe to use, and is widely used for lifting and handling steel materials, as well as for the installation and handling of flat mechanical parts and various molds. It is suitable for lifting and handling steel plates at room temperature in industries such as shipbuilding, construction machinery, and automobiles. It is mainly used for connecting with the workpiece during lifting, and for moving iron plates, blocks, and cylindrical magnetic materials. It is easy to operate, safe and reliable, and has a compact and lightweight design. It is widely used in factories, docks, warehouses, and the transportation industry, improving working conditions and increasing labor efficiency in loading and unloading operations.
Features
Features include simplicity, light weight, no power supply or control system required, and ease of use.
Technical Data
| Model | Rated capacity (kg) | Maximum pull-out force | Length A(mm) | Width B(mm) | Base height H(mm) | Net welght (kg) | Gross welght (kg) |
| HC-1T | 1000 | 3.5 times | 550 | 500 | 105 | 170 | 190 |
| HC-2T | 2000 | 3.5 times | 650 | 560 | 115 | 265 | 280 |
| HC-3T | 3000 | 3.5 times | 840 | 565 | 115 | 330 | 345 |
| HC-5T | 5000 | 3.0 times | 1060 | 700 | 145 | 610 | 638 |
| HC-10T | 10000 | 3.0 times | 1200 | 773 | 220 | 1266 | 1300 |
| 2T Extended version | 2000 | 3.5 times | 1100 | 400 | 140 | 305 | 320 |
| 3T Extended version | 3000 | 3.5 times | 1100 | 400 | 140 | 345 | 360 |
Service
1.Providing standardized and specification-compliant products.
2.Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
1.All products come with an 18-month warranty period.
2.Replacement of damaged components (non-human-induced) is provided during the warranty period.
We offer free technical advice for life to all our customers.
90% of the crane spare parts manufactured in our factory, we are able to supply our customers with the parts they need in the first instance and guarantee their suitability for use.
We provide professional installation teams for customers in need to ensure the safe and effective operation of our products.
We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
