Description

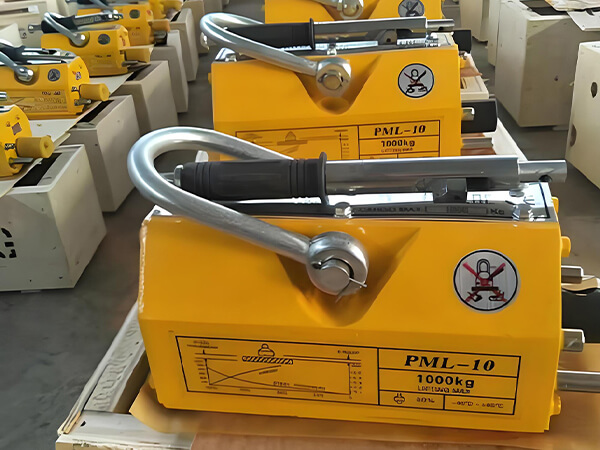

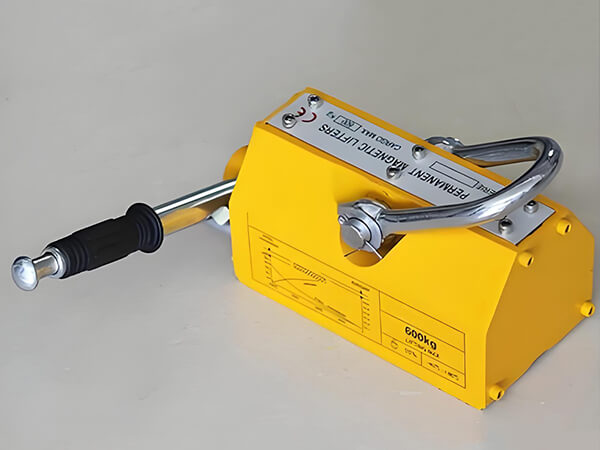

A manual permanent magnetic lifter is a tool that uses the magnetism of permanent magnets to attract metal objects. Its core principle is to firmly hold metal objects in place using a strong magnetic field. The most significant feature of this chuck is its “manual” operation; it’s extremely simple to use. Users simply control the magnetic field to turn it on and off manually, allowing for easy grabbing and releasing of objects.
Working Condition
Manual permanent magnetic lifter are suitable for handling steel plates, iron blocks, and cylindrical iron materials, such as machine parts, punching dies, and various steel materials. This type of permanent magnet lifter is a power-free lifting device. With an advanced structure and manufactured according to export standards, its quality and performance reach the advanced level of similar international products. Permanent magnet lifters are widely used in the machinery industry, mold manufacturing industry, warehousing, and transportation sectors for handling magnetic objects such as steel plates and ingots.
Features
Compact structure, easy to operate
High-performance permanent magnetic material, does not demagnetize
No electricity or other power support required during operation
Advanced and scientific magnetic circuit balance design, strong holding force, almost zero residual magnetism, safe and reliable
Maximum pull-out force is 3.5 times the rated lifting capacity, high safety factor
Technical Data
| Model | Rated capacity | Pull-off force | Length (mm) | Width (mm) | Height (mm) | Net weight (kg) | Gross weight (kg) |
| PML-100 | 100 | 3.5 times | 87 | 64 | 69 | 3 | 3.5 |
| PML-200 | 200 | 3.5 times | 142 | 87 | 85 | 7.1 | 7.6 |
| PML-300 | 300 | 3 times | 143 | 89 | 87 | 7.8 | 8.3 |
| PML-400 | 400 | 3 times | 178 | 89 | 87 | 9.5 | 11 |
| PML-600 | 600 | 3 times | 200 | 112 | 103 | 16.1 | 18 |
| PML-800 | 800 | 3 times | 222 | 111 | 116 | 20.5 | 23 |
| PML-1000 | 1000 | 3 times | 267 | 133 | 126 | 32 | 34 |
| PML-1500 | 1500 | 3 times | 295 | 143 | 143 | 43 | 45 |
| PML-2000 | 2000 | 3 times | 355 | 155 | 155 | 59 | 63 |
| PML-3000 | 3000 | 2.8 times | 410 | 160 | 180 | 82 | 86 |
| PML-5000 | 5000 | 2.8 times | 508 | 234 | 196 | 180 | 188 |
| PML-10T | 10000 | 2.8 times | 793 | 300 | 465 | 560 | 580 |
| Model | Rated lifting capacity | Pull-off force | Length(mm) | Width(mm) | Height(mm) | Net weight (kg) | Gross weight (kg) |
| HD-100 | 100 | 3.5 times | 87 | 64 | 69 | 3.5 | 4 |
| HD–200 | 200 | 3.5 times | 142 | 87 | 85 | 7.6 | 8.1 |
| HD–300 | 300 | 3.5 times | 178 | 88 | 85 | 9.6 | 11 |
| HD–400 | 400 | 3.5 times | 200 | 112 | 103 | 16 | 17 |
| HD–600 | 600 | 3.5 times | 222 | 111 | 116 | 20.1 | 22 |
| HD–800 | 800 | 3.5 times | 267 | 133 | 126 | 30 | 32 |
| HD-1000 | 1000 | 3.5 times | 295 | 143 | 143 | 41 | 43 |
| HD–1500 | 1500 | 3.5 times | 355 | 155 | 155 | 61 | 65 |
| HD–2000 | 2000 | 3.3 times | 360 | 160 | 182 | 74 | 77 |
| HD–3000 | 3000 | 3.3 times | 467 | 160 | 182 | 95 | 99 |
| HD–5000 | 5000 | 3.3 times | 600 | 232 | 260 | 222 | 230 |
| HD–10T | 10000 | 3.0 times | 600 | 467 | 260 | 580 | 600 |
Waterproof permanent magnetic lifter
| Model | Rated lifting capacity | Pull-off force | Length (mm) | Width (mm) | Height (mm) | Handle length Long handle | Net weight (kg) |
| HG-150 | 150 | 4.0 | 180 | 81 | 70 | 200 | 6.5 |
| HG-300 | 300 | 4.0 | 211 | 81 | 83 | 200 | 11 |
| HG-600 | 600 | 4.0 | 288 | 112 | 106 | 250 | 22 |
| HG-1000 | 1000 | 4.0 | 338 | 148 | 131 | 280 | 43 |
| HG-2000 | 2000 | 4.0 | 425 | 160 | 160 | 360 | 90 |
